Municipal Castings

Gully Gratings / Top Entry & Kerb Gully Cover & Frame

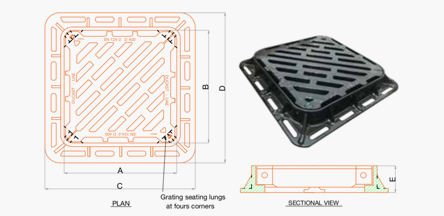

TOP ENTRY GULLY COVER & FRAME

  • Manufactured to EN - 124 - 2 (2015).
  • Badging optional
  • Paint as per customer’s requirement.
  • Denotes that the product is kitemarked.
  • Code
    Clear Opening
    A x B (mm)
    Over Base
    C x D (mm)
    Frame Depth
    E (mm)
    Kitemark
    Product
    Loading Class
    KN
    Drawings
  • G - 3
    434 x 434
    584 x 520
    100
    400
  • G - 3A
    450 x 450
    555 x 555
    100
    -
    400
    -
  • G - 4
    600 x 600
    755 x 755
    100
    400
  • G - 7
    700 x 700
    850 x 850
    100
    -
    400
  • G - 8N
    635 x 635
    800 x 800
    100
    -
    400
    -
  • G - 36
    360 x 560
    580 x 780
    75
    -
    400
  • DI-2GD
    300 x 300
    440 x 440
    75
    -
    400
  • DI-2G
    300 x 300
    400 x 400
    40
    -
    C250

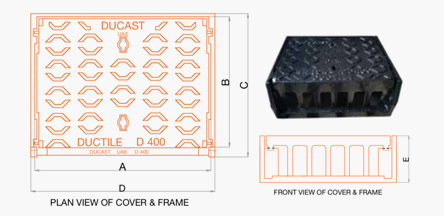

KERB GULLY COVER & FRAME

  • Badging optional
  • Paint as per customer’s requirement.
  • Denotes that the product is kitemarked.
  • Code
    Clear Opening
    A x B (mm)
    Over Base
    C x D (mm)
    Frame Depth
    E (mm)
    GRP Seal Plate
    Provision
    Kitemark
    Product
    Loading Class
    KN
    Drawings
  • DI-K6C
    505 x 490
    525 x 575
    150
    Debris Grid
    N
    250
  • DI-K2
    532 x 405
    460 x 558
    205
    Debris Grid
    N
    400
  • DI-K2A
    532 x 405
    492 x 610
    205
    Debris Grid
    N
    400
    -
  • DI-K3
    532 x 405
    492 x 610
    205
    Debris Grid
    A
    400
  • DI-K4
    800 x 405
    875 x 500
    205
    Debris Grid
    A
    400
