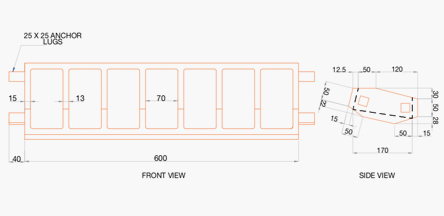

KERB SIDE INLET GRATINGS
Manufactured to EN - 124 - 2 (2015).
Badging optional
Paint as per customer’s requirement.
Denotes that the product is kitemarked.
Code
Length (mm)
Opening (mm)
Drawings
CB - 1
600
170
CB - 1GA
600
120
CB - 2G
700
170
CB - 3G
600
270
-
CB - 4G
700
270
-
CB - 6G
600
80
CB - 7G
700
120
Manufactured to EN - 124 - 2 (2015). Badging optional Paint as per customer’s requirement.
Denotes that the product is kitemarked.
